EON Lithium batteries are fully compatible with Deye inverters. The setup guide will assist the installer with the correct configuration and setup of the inverter and battery.

Note: these settings only apply to one battery. For multiple batteries, please follow the instructions in the manual as well as the best practices for paralleling batteries.

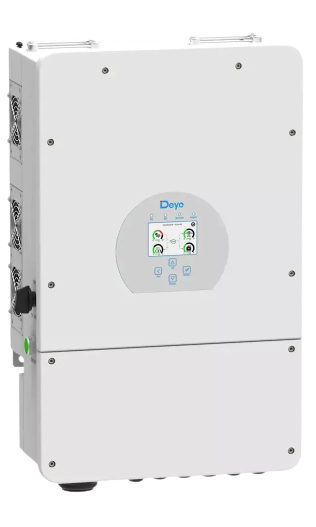

Deye Inverter
Deye Inverter
Deye Inverter

Deye Inverter Installation Guide

Download the inverter guide to view all the information.

black blurred background.png
Battery Type & Setting

3. Shut Down

  • The recommended shutdown % is 20% as it will prolong the battery life and deliver optimal performance.

2. Battery Charge

  • Charge Amps: Set to 25 – 50A per 5kWh Battery. When it comes to more than one battery, you will multiply your charge amps as well as discharge amps by the number of batteries that you have.

  • See the Table for Float, Absorption and Equalization charge values. These are usually set automatically via the comms from the battery BMS.

1. Battery Type

  1. Select Lithium

  2. Battery Capacity: 100Ah (for 1 x 5kWh Battery)

  3. Charge Amps: 25 – 50A per 5kWh Battery (this is the maximum charge setting that you want the batteries to charge at.)

  4. Discharge Amps: Set according to Inverter size and battery capacity.

Battery Type & Setting

Battery Type Setting

black blurred background.png

Power cables

  • Check the rating of the inverter and the battery pack that will be working together. Make sure that the correct gauge cable is used and the correct fuse protection.

  • If the power rating of the battery is lower than the inverter, then make sure the maximum discharge current is set to conform to the battery power rating.


  • Inverter = 8kW (Max power is 8kW or 160A DC)

  • Battery = 5kWh (Max power is 5kW or 100A DC)

  • Set the maximum discharge current to 100A in the battery settings.

  • For batteries connected in parallel, please see the best practices guide.

Power and Communication Cable Connections

Battery Power
Battery Cable Connection
Explanation Sheet

Communication cables

The communication cable that comes with the Deye inverter can be used to communicate from the CAN BMS port of the inverter to the CAN port of the battery. The CAN PIN outs are as follows:

NOTE: If there is a communication problem between the inverter and the battery, only use the CAN H and CAN L connections and remove all other cables.

EON Lithium CAN
Deye Inverter CAN
black blurred background.png

Parallel or Multiple battery Installation – EON Lithium Dip switch settings

If you are using one battery, then set the DIP switches as the master or Battery 1. If you have multiple batteries in parallel, then follow the table below to set each battery accordingly. Also make sure to connect the supplied comms cable between the battery RS485 parallel ports (7 in following figure):

Switch Position Codes
